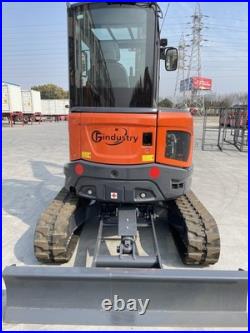

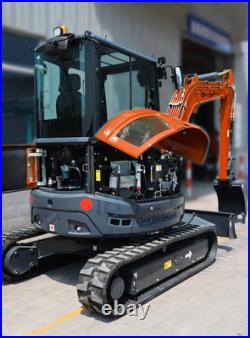

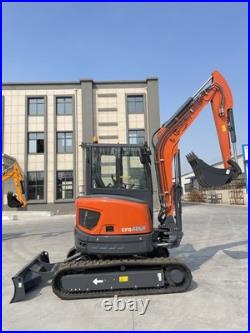

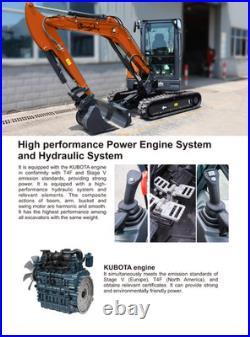

CFG 40UF 25 Hp 4 Ton Hydraulic Excavator Kubota Engine Cab with AC&Pilot Control. Welcome to our store! CFG40UF is an all hydraulic track excavator with beautiful appearance, 360° rotatable flat roof, 850mm long small rear end, all of these ensure the work in limited place. The engine is KUBOTA 3-cylinder water-cooling diesel engine which has a normal rated power of 18.2kW/2200rpm. Use flexible supporting breadthwise, install the engine at the rear end of machine. Large capacity water tank with air exhaust device for the engine cooling system can effectively protect engine and ensure normal work in high temperature and prevent overheating. The main pump and engine directly connected with coupling, maximum work pressure is 24.5 Mpa. Use flexible shaft coupling installed in the diesel motor flywheel to drive the main pump, perfectly avoid the influence on main pump, which is caused by the vibration of diesel motor. Hydraulic pump, main valve, drive motor and swing motor which are products of international brand with perfect quality and stable work condition can ensure the stable work of the whole system. Powerful & Reliable Engine: Kubota D1703-E4B-SWD-1 diesel engine delivers 25 HP (23.4 kW) with water cooling for consistent performance in all conditions. Exceptional Digging Capabilities: Max digging depth of 3120 mm (130.7) and 31.8 kN digging force, ideal for deep trenching and heavy-duty tasks. Superior Maneuverability: 55° left/right side swing and 30° maximum angle for effortless operation in tight spaces; 30% climbing ability handles sloped terrain. Compact & Efficient Design: 1700 mm narrow width for easy access to confined areas; 2.3/4.0 km/h travel speeds for quick site movement. Practical Engineering: 26 L fuel tank and 24 L hydraulic oil tank reduce refueling stops; cabin design for operator comfort. Construction & Renovation: Trenching for foundations, moving debris, and grading in urban or rural construction sites. Landscaping & Gardening: Digging flower beds, shaping terrain, and moving soil or mulch with precision. Utility & Pipeline Work: Installing underground pipes, cables, or drainage systems with its deep digging depth. Municipal Maintenance: Roadside repairs, park renovation, and small-scale infrastructure projects. Operating Weight: 3.8 Ton (8377 lb). Overall Length: 4890 mm (192.5 in). Overall Width: 1700 mm (67 in). Overall Height: 2555 mm (100.5 in). Track Size: 3005584 (WPL). Rated Power: 18.2 kW (24.4 HP). Fuel Capacity: 40L (10.6 gal). Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min). Hydraulic Pressure: 24.5 MPa (3553 psi). Hydraulic Tank Capacity: 41 L (10.8 gal). Max Digging Depth: 3320 mm (131 in). Max Digging Height: 5045 mm (198 in). Max Dumping Height: 3520 mm (138 in). Max Reach at Ground: 5575 mm (219 in). Dozer Blade Width: 1700 mm (67 in). Dozer Blade Height: 366 mm (14 in). Blade Max Lifting Height: 336 mm (13 in). Blade Max Drop Depth: 336 mm (13 in). Equipped with air conditioning for enclosed cabins, this mini excavator keeps operators cool and comfortable during long hours on the job. Grabs, lifts, and secures materials with ease, making every job more efficient. Works tight against walls and obstacles for maximum versatility on the jobsite. Thanks for your understanding. The carrier may changed to your local logistics if you’re in. If you have any needs for.
